FEATURES
¡¤Advanced IGBT inverter technology,suit for TIG and MMA welding.
¡¤Compact,portable highly effective and low consumption,energy saving;
¡¤Anti-stick,thermostatic control,fan cooled,carrying strap and handle.
¡¤Hot start,arc force,overload protection.
¡¤HF(high frequency) arc-starting.
¡¤Supplied complete with TIG torch,electrode holder,and earth clamp,face mask and welding brush,carton box.
¡¤Extremely flexible use for welding materials such as:steel.iron,titanium copper,nickel and alloys.
¡¤Advanced IGBT inverter technology,suit for TIG and MMA welding.
¡¤Compact,portable highly effective and low consumption,energy saving;
¡¤Anti-stick,thermostatic control,fan cooled,carrying strap and handle.
¡¤Hot start,arc force,overload protection.
¡¤HF(high frequency) arc-starting.
¡¤Supplied complete with TIG torch,electrode holder,and earth clamp,face mask and welding brush,carton box.
¡¤Extremely flexible use for welding materials such as:steel.iron,titanium copper,nickel and alloys.

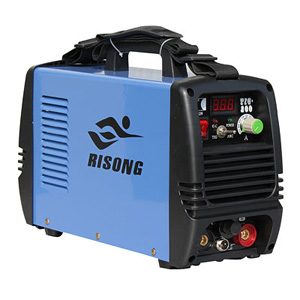

IGBT Inverter TIG Welding
| Model | TIG-160 | TIG-180 | TIG-200 |
|---|---|---|---|
| Rated Input Voltage | 220V/1PH | 220V/1PH | 220V/1PH |
| Rate Input Capacity(KVA) | 3.4 | 4.0 | 4.6 |
| No-Load Voltage(V) | 65 | 65 | 65 |
| Currency Adjusting Range(A) |
10~150 | 10~165 | 15~185 |
| Rated Duty Cycle | 35% | 35% | 35% |
| Usable Electrodes(mm) | 1.6~3.2 | 1.6~3.2 | 1.6~4 |
| Efficiency(%) | 85% | 85% | 85% |
| Arc-starting(cos) | 0.98 | 0.98 | 0.98 |
| Accessories | TIG torch electrode holder and earth clamp face mask and welding brush | ||
| Cables(copper) | 16mm | 16mm | 16mm |
| Isulation Class | F | F | F |
| Protection Class | IP21S | IP21S | IP21S |
| Dimension(cm) | 37¡Á15¡Á30 | 37¡Á15¡Á30 | 37¡Á15¡Á30 |
